Power Solutions
Schneider Electric License Products
S&SYS & Schneider Electric License Products
- Design + Production
- Technical partnership
- Delivery
Under technological ties with Schneider Electric, S&SYS has designed, produced and delivered high voltage switchgear, high voltage startup panels, low voltage switchgear and panel boards since 2008.
Products
-

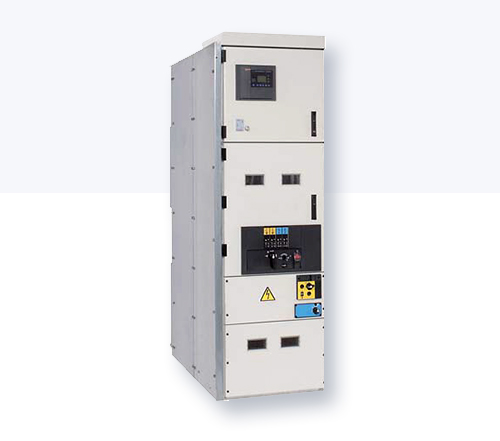

MCset(High Voltage Switchgear)
-

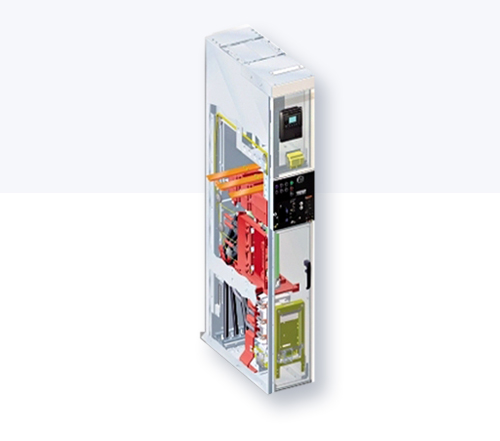

Motorpact(High Voltage Startup Panel)
| MCset | Motorpact | |
|---|---|---|
| Applied Specifications | IEC 62271-200 | |
| Certifications | DNVGL, BV, LR, RINA | DNVGL |
| Rated Voltage / Frequency | AC 7.2kV~24kV/50/60Hz | AC 7.2kV/50/60Hz |
| Rated Short Time Withstanding Current |
25kA/1 sec 31.5~40kA/0.15 sec |
25kA/1 sec 40kA/0.5 sec |
| Rated Current | 2500A ~ 4000A | 2500A ~ 3150A |
| Distribution Board Structure |
Metal-enclosed | |
| IP Rating | IP42 | |
-

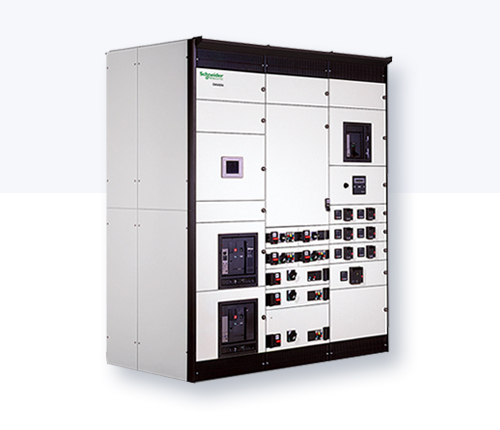

Okken(Low Voltage Switchgear)
-

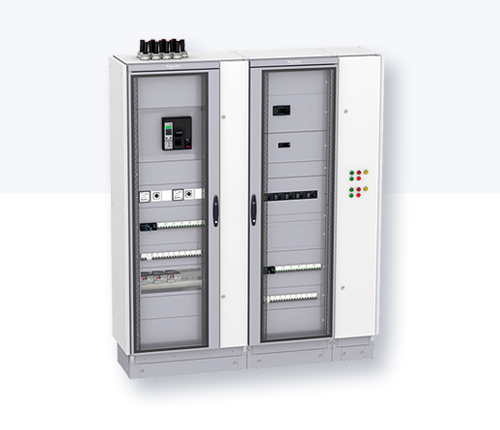

Prisma iPM(Panel Board)
| Okken | Prisma iPM | |
|---|---|---|
| Applied Specifications | IEC 61439 | |
| Certification | DNVGL | |
| Rated Voltage / Frequency | Up to 690V / 50Hz~60Hz | |
| Rated Short Time Withstanding Current |
100kA/1 sec | 85kA/1 sec |
| Rated Peak Withstanding Current |
220kA/1 sec | 170kA/1 sec |
| Rated Current | 7200A | 4000A |
| Cable Direction | TOP & BOTTOM | |
| Form | 3b/4b | 1/2/3b/4b |
| IP Rating | IP22, IP32, IP54 | IP31, IP54 |
Functions & Features
-
Complies to
High Usage
Requirements- Complies to high usage requirements in marine projects
-
Product
Standardization- Standardized size
-
Rich Delivery
Performance
in Korea- 1 TEEKAY FPSO
- 1 EGINA FPSO
- 4 BGT LNG CARRIERS
- 2 STATOIL FSUs
- 1 INPEX CPF
- 4 MAERSK DRILL SHIPS
