Distribution Board

Overview

S&SYS Distribution Board

  • Compact size
  • Competitive price
  • Reliable performance

Distribution board by S&SYS was tested according to IEC 61439. Products were developed and delivered to meet purposes of commercial vessels and special vessels. Reliable performances are provided to the final loads.
We strive for customer satisfaction at competitive price in a compact size compared to competitors.

Products

We have delivered SSDB to all commercial vessels such as tankers, container ships, LNG vessels and drill ships and RECT to FLNG.

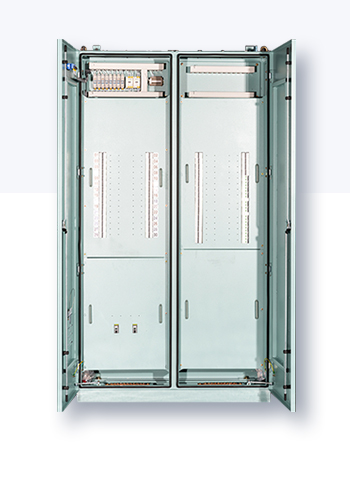

  • SSDB(Floor-mounted)
    SSDB

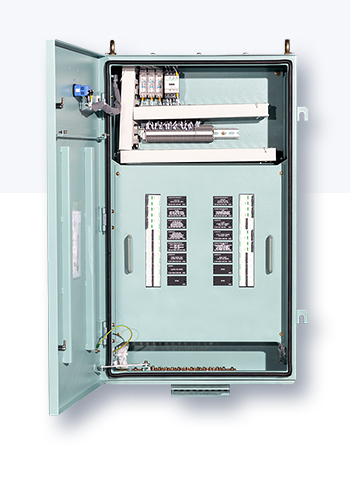

  • (Wall-mounted)
    Wall-mounted

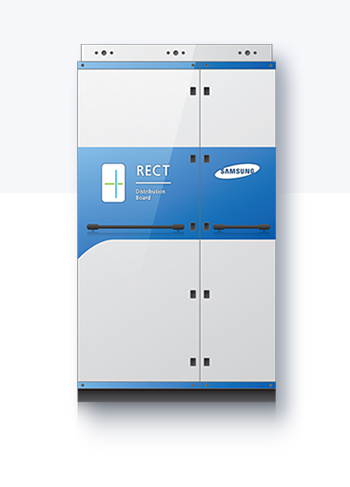

  • RECT
    RECT
SSDB RECT
Applied Specifications IEC 61439
Rated Voltage Up to 440V Up to 690V
Rated Frequency 50/60Hz
Rated Short Time
Withstanding Current
10kA/1 sec 25kA/1 sec
Rated Peak
Withstanding Current
17kA/1 sec 52.5kA/1 sec
Rated Current 400A 800A
Cable Direction TOP & BOTTOM BOTTOM
Installation Type Wall-mounting, Floor-mounting Floor-mounting
Form 1 2b
IP Rating IP22 IP22, IP44

Functions & Features

  • Competitive Price
    Competitive
    Price
    • Competitive price
  • Easy Maintenance
    Easy
    Maintenance
    • Wall-mounting (only for SSDB) and floor-mounting
    • Tested according to IEC 61439
    • Convertible and optimized size to load size
    • Easy maintenance structure
  • Worldwide Services
    Worldwide
    Services
    • Worldwide quality services
