S&SYS Automation Solution

The standard for integrated control and monitoring,
reliably supporting smart ship operations.

Precisely controls key ship systems through SSAS-Master-based IAS/ICMS/AMS, and enhances operational continuity through redundant architecture, cyber security, and remote (RMS) maintenance.

Ship Operation Control System

An unrivaled technology-based ship operation control system solution leading the digital transformation of smart ships

Centered on the high-performance SSAS-Master, we provide a user-friendly integrated control system and support stable vessel operations through remote maintenance.

S&SYS Automation Solution

System Configuration

S&SYS Automation Solution

SSAS-Master

SSAS-Master is a next-generation integrated control solution developed on over 30 years of expertise in ship automation, delivering high reliability and proven performance in terms of efficiency, safety, and ease of maintenance.

Equipped with high-performance processing capabilities and a universal I/O architecture, SSAS-Master precisely and reliably controls key vessel systems including generators, pumps, cargo handling equipment, and navigation equipment. With redundancy across every layer — from top-level workstations down to the lowest I/O cards — uninterrupted control and continuous monitoring remain available even in the event of a single fault.

Designed for modern ships, SSAS-Master enhances operational efficiency through an intuitive HMI, multi-monitoring interfaces, and customized reporting functions, while advanced cyber security features guarantee the safety and continuous operating performance demanded by smart ships. The system is applicable to all commercial vessels and is optimized for dual-fuel propulsion ships — including LNG, LPG, and methanol-powered vessels — as well as LNG carriers.

Product Specifications - Hardware

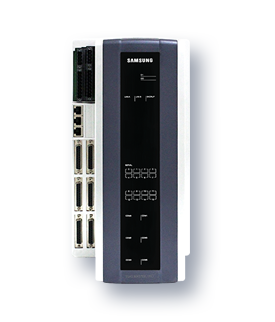

SSAS-Master PCU (Process Control Unit)

Multi-core processor with real-time operating system
Fault-tolerant Ethernet control unit (upper interface)
Fault-tolerant, non-stop control network and I/O network (I/O interface)
Modbus 8 channels (electrically isolated communication channels)
Profibus Master 2 channels (electrically isolated communication channels)
Redundancy configuration support (Redundancy)

SSAS-Master RSPC-X32 (Process Control Unit)

Multi-core processor with real-time operating system
Fault-tolerant Ethernet control unit (upper interface)
Fault-tolerant, non-stop control network and I/O network (I/O interface)
Modbus 4 channels (electrically isolated communication channels)
Redundancy configuration support (Redundancy)

SSAS-Master I/O Modules (Input/Output Modules)

Embedded microprocessor (32-bit)
Fault-tolerant, non-stop control network and I/O network
Control network redundancy configuration support (Redundancy)
I/O modules supporting various signal types (Digital, Analog Input/Output, RTD, Universal)
16/32/48-channel configuration

Control Function

S&SYS Automation Solution

Equipment Control & Monitoring System

· Essential pumps control (Auto/Remote Manual, Duty/Standby, Sequential start)

· Remote controlled valves (Single, Double acting, Open/Shut, Throttling)

· E/R Fan control (On/Off, FWD/REV, High/Low speed)

· Heeling control (for Container vessels), Air compressors control (Lead/Lag)

· Control & Monitoring support (Thruster, Engine)

· PID Control for Cooling system (C.S.W, C.F.W)

S&SYS Automation Solution

Power Management System

· Prevents total blackout during closed-busbar operation under unstable frequency conditions

· Redundant dual power management system

· Bus-tie opening and power restoration function

· Gas-mode release function for stable operation

· Breaker replacement without partial blackout

S&SYS Automation Solution

Gas Management System

Built on decades of expertise in fuel gas supply systems (FGSS), low-flash-point fuel supply systems (LFSS), and vaporization/reliquefaction system control, SSAS-Master delivers robust, proven control performance at a competitive price. With a flexible design, SSAS-Master supports both high-pressure and low-pressure FGSS configurations, with or without compressors. Based on extensive experience with both direct and indirect vaporization control, it provides optimized solutions for all types of FGSS, LFSS, and vaporization/reliquefaction systems.

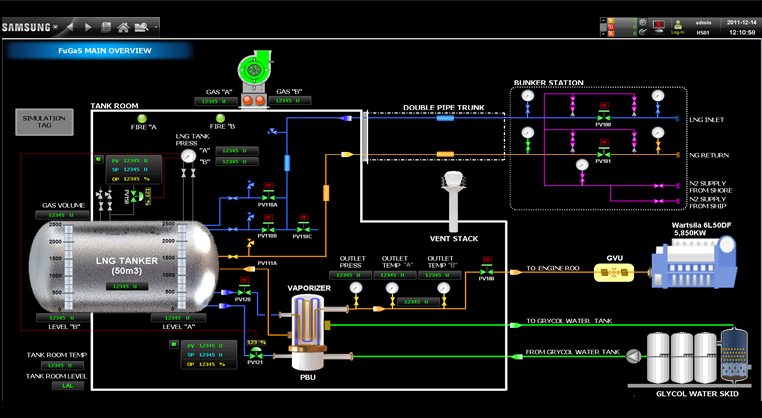

FGSS Control System

LFSS Control System

S&SYS Automation Solution

Software Support Functions

Day/Night Theme Switching

Supports automatic switching among up to four themes based on scheduled times (day/night, etc.), with manual switching also available for user convenience.

Multi-Monitor

Supports up to four monitors in multi-monitor configurations.

Split Screen

Provides up to four-way split screens and zoom functionality.
Users can monitor multiple sources of information simultaneously, enabling more efficient system control.

User-Centered Design

Upgraded to a Ribbon UI similar to common commercial software, providing users with convenient and intuitive tool operation.

IAS TRAINING

Step-by-Step Training Support to Enhance Operational Capability

Through a systematic four-stage training program, S&SYS helps operators rapidly build proficiency in IAS operation and maintenance. We offer online/offline training,
GMS simulation, and onboard training before and after ship delivery, enabling hands-on, experience-based learning under conditions identical to actual operations.

Training Center Education

· Online/offline education on system operation and maintenance
· Focused on key functions, alarm response, and basic inspection procedures

Onboard Training

· Hands-on field training during the pre-delivery sea trial period
· Familiarization with monitoring and control procedures under actual operational conditions

GMS Simulation Program
for Enhanced System Operating Proficiency

· Provides a FAT-based GMS simulation program to enhance user proficiency

Onboard Education Service
(Warranty Onboard Service)

· System operation support and training during actual ship operations (for the 1st or 2nd vessel)
· Available as either one 30-day session or two 15-day sessions, accommodating shift schedules

S&SYS Automation Solution

SSAS-RMS (Remote Maintenance System)

SSAS-RMS is a remote maintenance system that connects to onboard systems from shore for real-time monitoring and maintenance support.

With this feature, users can receive immediate and effective maintenance service without the inconvenience of waiting for a service engineer to coordinate boarding schedules and perform onboard repairs. In addition, onboard data captured by the system is transmitted in real time, enabling shipowners and operators to analyze and improve vessel performance, efficiency, and safety based on the data.

S&SYS Automation Solution

24/7 Remote Service Support

· System status check

· Troubleshooting support

· Software modification, update/upload

· Crew training

S&SYS Automation Solution

Cyber Security Certifications

S&SYS has obtained cyber security certifications from ABS, KR, RMRS, and BV,
and is currently undergoing certification with CCS, LR, DNV, and NK.

1) Compliance with IACS UR E27 Cyber Security Requirements

- Security features meeting all 41 cyber security requirements

2) System Access Control

- Prevents unintended system use through account and privilege management

3) Compliance with the Three Core Security Requirements

- Ensures confidentiality, integrity, and availability for reliable system operation

4) DoS Event Detection, Defense, and Recovery

- Detects and alerts when a DoS event occurs on the system network
- Automatically switches to a redundant network after DoS defense and restores the system
(Maintains operation through automatic system recovery)
