Automation Solutions
Alarm Monitoring System
/ Integrated Control & Monitoring System
AMS/ICMS, SSAS-Master(S)
"Since its design incorporates an innovative dualization system,
it can detect and control even the trivial faults."
SSAS-Master S by S&SYS is an automatic control system solution based on AMS (Alarm Monitoring System), ICMS (Integrated Control and Monitoring System) and PMS (Power Management System).
This system was optimized to all commercial ships and special purpose ships such as oil tankers, container ships, Ro-Ro, cruise ships and shuttle tanks.
Also, by applying fieldbus, it has easy expandability of I/O cabinet, and the application of 8/16/32/48 channel device means reduction of cabinet capacity.
Products
-

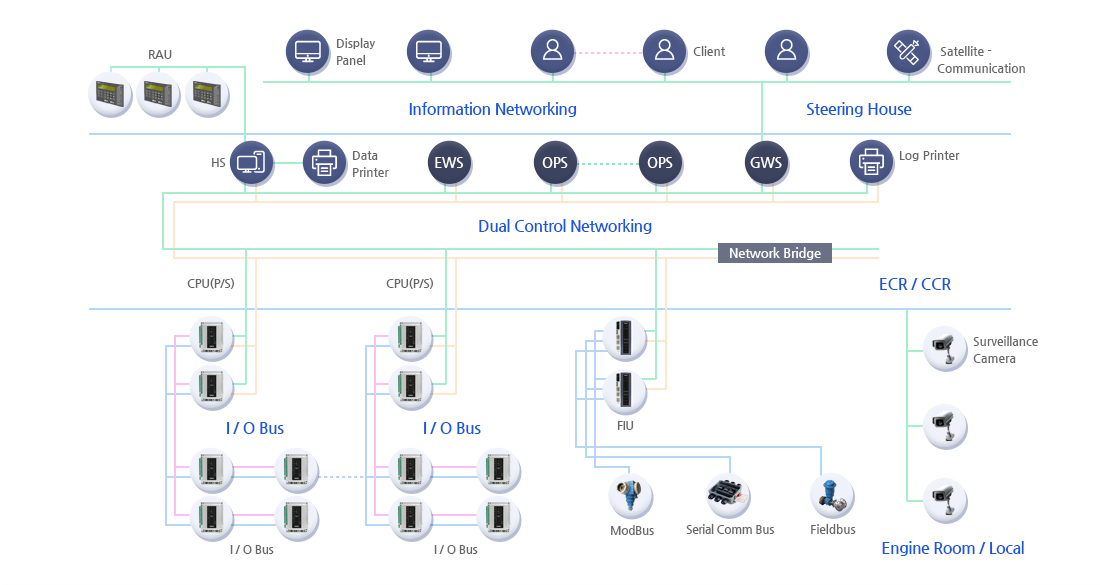

Simple and systematic network composition
-
Can be installed regardless of place
such as DIN rails and panels, etc. -
Compact and uniform modular
hardware structure -
Fault tolerant / uninterruptible hardware
replacement ensures system continuity
and easy maintenance -
Easy to check status via external LED
-
Intuitive and modern design
-
RSPC-X32 (Process Control Unit)
- Built-in 32-bit microprocessor with real time operating system
- Fault tolerant Ethernet control unit (high-level interface)
- Fault tolerant control network & I/O network (I/O Interface)
- Supports default Modbus 2 channels
(Electrically separated serial communication channel) - Supports dualized RSPC-X32 composition (Redundancy)
-
I/O modules (I/O Modules)
- Applied embedded microprocess (16-bit)
- Fault tolerant control network & I/O network
(RSPC-X32 Interface) - Supports dualized composition of control network
(Redundancy)
- I/O modules that support various types (digital, analog input/output)
- Interlock with PCU (FIU) based on communication with SSAS-Master IOGW
- 8/16/32/48 channel composition
(Channel status indicated on LED)
-
Serial Interface module (Serial Communication Unit)
- Built-in 32-bit microprocessor with real time operating system
- Fault tolerant Ethernet control unit (high-level interface)
- Supports default Modbus 8 channels
(electrically separated serial communication channel)
Functions & Features
-
- High Performing and Highly Reliable Components
-
- - Built-in 32-bit microprocessor
with real time operating system - - Can be installed regardless of place such as
DIN rails and panels - - Compact and uniform modular hardware structure
- - Built-in 32-bit microprocessor
-
- High Reliability
-
- - Dual composition of process control and database
- - Fault tolerant control network & I/O network
-
- Powerful Integration & Interface
-
- - Expandability with 3rd party based on
standard interface protocol - - Diverse and easy-to-use user definition report
- - Expandability with 3rd party based on
-
Provides modern design guidance
and optimized system- Prevent process errors based on shipbuilding and system engineering experience
- Interface in harmony with 3rd party systems
(Boiler, CES, ESDS, EPS, INS, SMS, CCTV, etc.) - Modularization for easy installation and fault tolerant replacement
for low maintenance costs, etc. - Two-way knowledge based manuals for maintenance and repairs
-

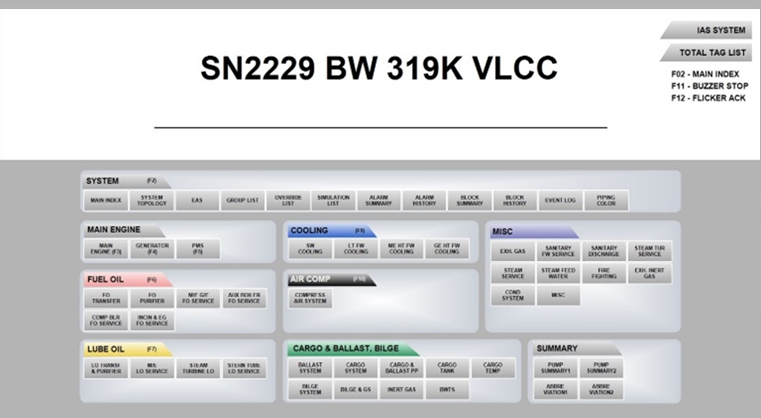

Intuitive and Easy Controls
& Efficient Problem Solving- Drag-and-drop trend analysis
- Integrated explanation on animation functions, equipment and process
- Integrated log input for trend analysis and loop interpretation
- Change and expand page by aligning multiple windows
- Multiple monitor function
- Screen composition optimized to various resolutions

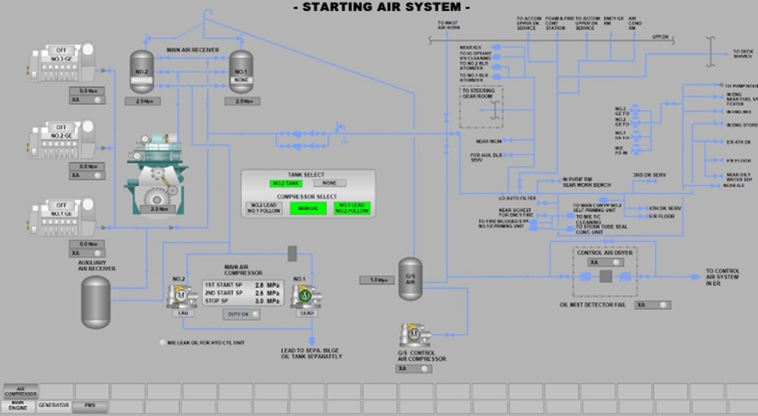

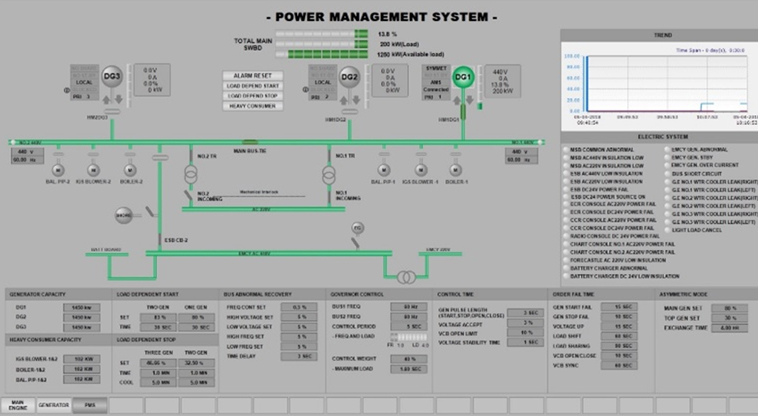

All graphics come with specifications
and operation manuals for
easy reference of the operator.
