S&SYS High Voltage Switchboard

  • Reliable supply
  • Control
  • Measurement
  • Protection

High voltage switchboard by S&SYS features diverse rated voltages and specifications based on knowhow and experience in shipbuilding industry and provides reliable supply, control, measurement and protection of power systems with customer convenience and safety as the top priority.

Products

Specifications

According to customer demand, we are supplying optimum products that meet diverse rated currents, breaking currents and installation conditions from 12kV to 40kA. We have delivered to various vessels including container ships, LNG vessels and shuttle tankers.

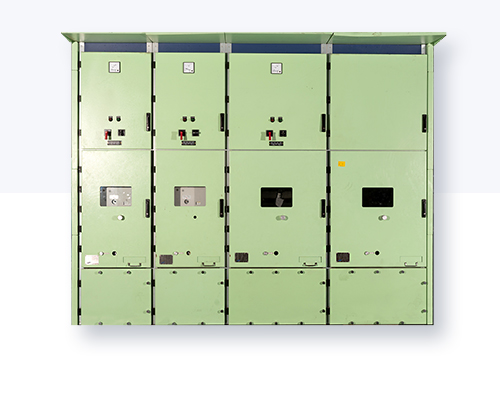

SSMV-7(R), SSMV-12
power high product

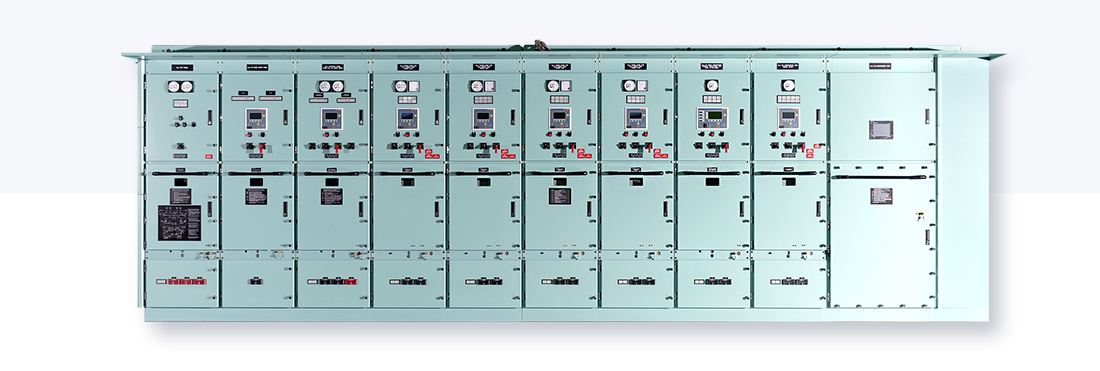

  • SSMV-7S
    power high product

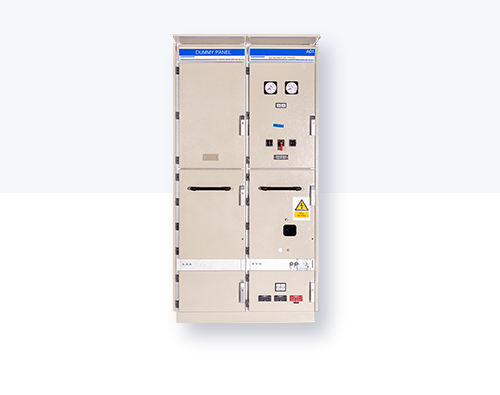

  • SEPT
    power high product
SSMV-7(R) SSMV-12 SSMV-7S SEPT
Applied Specifications IEC 62271-200
Certifications DNVGL, ABS, BV,LR, NK, KR DNVGL, ABS, BV,LR DNVGL, ABS,LR
Rated Voltage AC 7.2kV AC 12kV AC 7.2kV AC 12kV
Rated Frequency 50/60Hz
Rated Frequency
Withstanding Voltage		 20kV/min 28kV/min 20kV/min 28kV/min
Rated Shockwave
Withstanding Voltage		 60kV 75kV 60kV 75kV
Rated Short Time
Withstanding Current		 25kA/1 sec 40kA/1 sec
Rated Peak
Withstanding Current		 65kA/1 sec 104kA/1 sec
Rated Current 1250A / 2000A 1200A/1600A 1250A~3150A
IP Rating IP42 IP4X IP32
Options IR Window, Connection point insulation boots, etc.
* For details, inquire at the sales team.

Functions & Features

  • Reliability
    Reliability
    • Acquired various type certificates
    • Tested according to IEC 62271-200
  • Safety
    Safety
    • Metal-enclosed structure
    • Completed independent arc test
    • Acquired test results for vibration and inclination
    • Mechanical interlock considering safety
    • Various frontal controls
    • Ground switch for safe operation
  • Worldwide Services
    Worldwide
    Services
    • Intelligent system monitoring unit
    • Worldwide quality services
