Business
ECO Solution
S&SYS ECO Solution
Beyond environmental compliance to operational efficiency — providing an integrated lineup of eco-friendly equipment.
From BWMS, FGSS, LFSS to Air Lubrication System (ALS), we deliver tailored package configurations that ensure stable application and optimized vessel operation under any project conditions.
BWMS
From intake to discharge —
managing the entire ballast water cycle as a unified system
BWMS manages the entire ballast water process as a single integrated system, from intake through treatment to discharge.
Through filtration and disinfection, the system removes organisms that could impact marine ecosystems,
providing safe and reliable ballast water treatment that meets international regulatory standards.
S&SYS ECO Solution

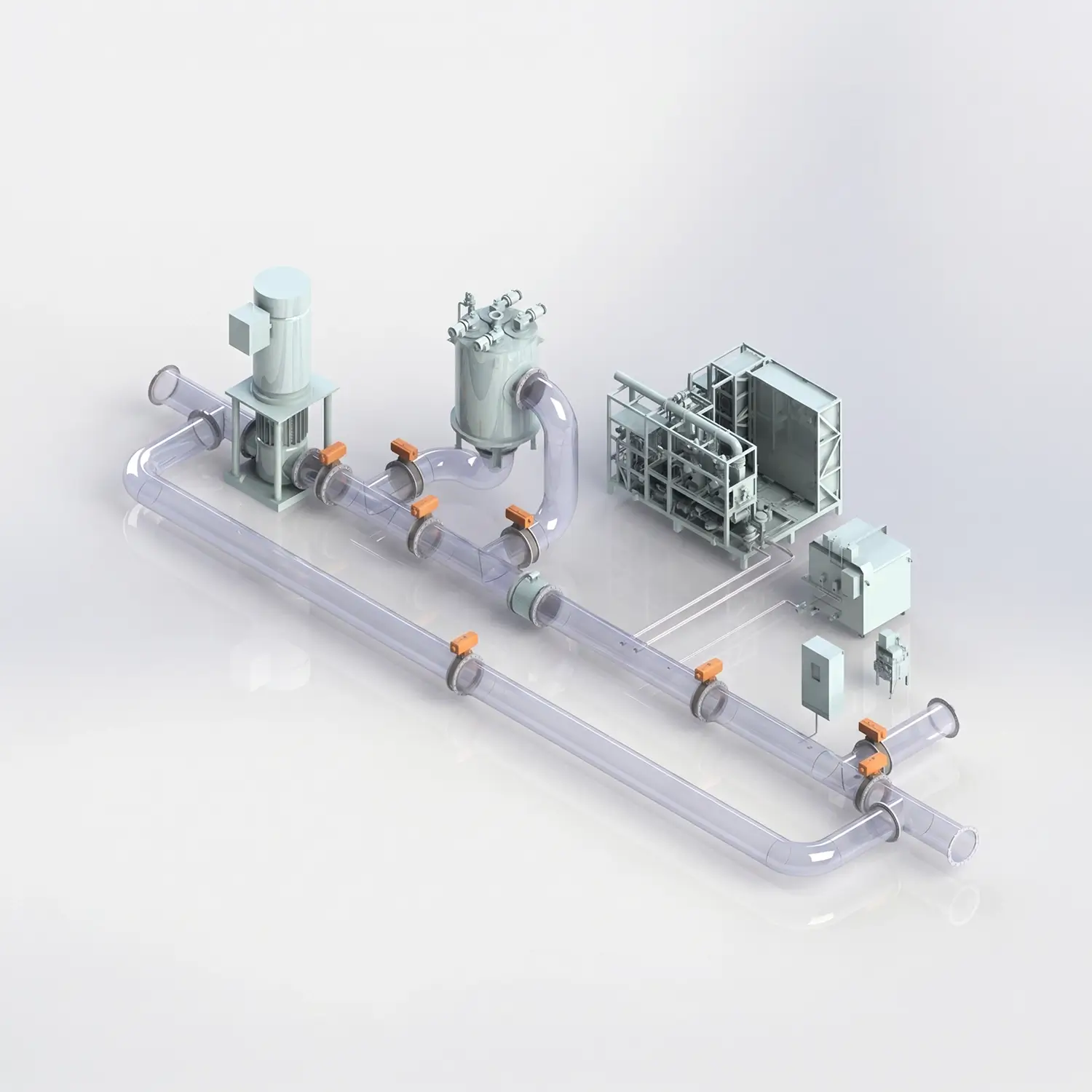

Purimar
Purimar effectively eliminates organisms harmful to ecosystems and aquatic environments, complying with IMO D-2 regulations. Active substances used during disinfection are reduced to environmentally harmless levels before discharge, making it a safe and eco-friendly ballast water treatment system.
Acquired IMO Basic Approval (Oct 2010) and Final Approval (Jul 2011), followed by government Type Approval (Oct 2011). USCG AMS (Alternate Management System) approval was obtained for the plate electrode model in October 2013 and the improved cylindrical electrode model in May 2014.
Purimar™ BALLASTING MODE
Purimar™ DEBALLASTING MODE
Configuration
Electrolysis Skid 1
Electrolysis Skid 2
Pre-Filter
Rectifier
Neutralization Unit
MCP / PDP
Blower
Electrolysis Cell
S&SYS ECO Solution
Eco-Purimar
The Eco-Purimar™ system is engineered based on Micro Bubble technology to satisfy the requirements of both IMO and USCG ballast water treatment regulations.
The ballasting process is performed in two stages. In the first stage, hydrodynamic cavitation occurs in the Bubble Burst Pipe (BBP), reducing organisms and bacteria in the ballast water through pressure and temperature changes. In the second stage, Micro Bubbles are uniformly diffused throughout the ballast water to stabilize treatment effectiveness, enhancing the reduction of residual microorganisms and adaptability to varying water quality conditions.
Ballasting Mode
Deballasting Mode
Configuration
BBP
(Bubble Burst Pipe)
BBF (Bubble Burst Filter)
ASU (Air Supply Unit)
MCP (Main Control Panel)
FLOW METER
Dual Fuel Supply System
Integrated alternative fuel supply solution
for next-generation eco-friendly vessels
Purigas™ is S&SYS’s proprietary dual-fuel supply system that manages the entire process from fuel storage to engine supply within a single package.
Precisely controlling optimal pressure and temperature for next-generation fuels, it enables an efficient energy management environment.
S&SYS ECO Solution
FGSS
From fuel storage to engine supply — unified in one system
From fuel storage to engine supply, FGSS manages the entire fuel supply process as one integrated system. LNG bunkered into storage tanks passes through supply pumps and high-pressure pumps to establish stable pressure conditions, then is converted to the required fuel state for the engine through vaporization.
S&SYS ECO Solution
Fuel Gas Supply System (PURIGAS™- LN)
S&SYS’s PURIGAS™-LN is an integrated package solution for LNG Fuel Gas Supply Systems (FGSS). From initial concept design through engineering, manufacturing, testing, supply, and commissioning — every stage is delivered as a turnkey solution, with systems optimized for each vessel’s operational conditions and specifications. The solution also ensures stable integration with major engine platforms including ME-GI, X-DF, and DFDE.
S&SYS ECO Solution
Marine Fuel Characteristics & Comparison
The table below compares key characteristics of various marine fuels (MGO, LNG, methanol, LPG, ammonia). It clearly presents calorific value, density, emission reduction effects, storage conditions, supply pressure, and required tank volume — assisting in selecting the optimal fuel based on vessel operating conditions and environmental regulations.
| Item | Marine Gas Oil(MGO) | Liq. Natural Gas(LNG -162°C) | Methanol(CH3-OH) | Liq. Pet. Gas(LPG) | Ammonia(NH3) |
|---|---|---|---|---|---|
| Specific Energy(MJ/kg) | 42.7 | 50.0 | 19.9 | 46 | 18.6 |
| Density(kg/m³) | 840 | 430~470 | 800 | 470~590 | 600 |
| ▼ Emission Reduction Compared to HFO Tier II | |||||
| SOx | Baseline | 90~99% | 90~97% | 92% | 100% |
| NOx | Baseline | 20~30% | 30~50% | 84% | Compliant with Regulation |
| CO2 | Baseline | 24% | 11% | 10~14% | ~90% (Using pilot oil) |
| PM | Baseline | 90% | 90% | 90% | ~ 90% |
| ▼ Physical Properties & Storage | |||||
| Boiling Point | 200~370℃ | -161℃ | 64.7℃ | -44 ~ -40℃ | -33.34℃ |
| Flash Point | 63~87℃ | -188℃ | 11℃ | -106 ~ -100℃ | 132℃ |
| Fuel Storage Condition | 25℃ | -165℃ | 25℃ | -32.8℃ at 0.5 barg |
-24.7℃ (To be dicussed) |
| Supply Pressure | 7~8 bar | 300 bar | 13 bar | 50 bar | 83 bar |
| Req. Tank Vol. | 1,000 m³ | 1,600 | 2,300 | 1,500 | 3,000 |
Flow diagram for ME-GI engines
FGSS skid units for main engines and generators
S&SYS ECO Solution
LFSS
The core fuel supply solution opening the era of low-flashpoint fuels
LFSS is an integrated fuel supply system designed for the unique characteristics of next-generation fuels such as methanol and ammonia. By safely storing fuels with low flashpoints and high handling complexity, and by controlling stable pressure and temperature for engine supply, it provides a practical answer to the marine industry’s demand for eco-friendly fuel transitions.
S&SYS ECO Solution
Low Flashpoint Fuel Supply System (PURIGAS™-ME)
S&SYS provides LFSS package solutions for the stable supply of low-flashpoint alternative fuels such as methanol. We deliver integrated support across the entire process — from concept design through detailed engineering, manufacturing, and commissioning — implementing a fuel supply system focused on safety and reliability tailored to vessel operating conditions. Core functions including fuel transfer/pressurization, temperature/pressure control, and filtration/circulation are configured as skid packages.
LFSS skid units for main engines and generators
